Prismatic Cell Machine Turnkey oplossing |
Prismatic Cell Production Line |
35 MWH / jier 35 GWH / jier |
|
Prismatic Cell Lab Line |
100 Pcs / day |
|
|
Prismatic Cell Assembly Line |
100000 Pcs / day |
|
|
Batterijgrutte: 30Ah, 50Ah, 100Ah, 150Ah, 280Ah, 314Ah ensfh Batterijproduksjeline: Supply "Turn key" Projekttsjinst. Materiaalsysteem: LFP, NCM, NCA, LCO / Natriumion Haadproses: Stapelproses Technology: Batterijtechnology-konsultaasje, begelieding, training, oerdracht, ensfh. |
||
Optimalisearje enerzjytichtens en betrouberens mei ús avansearre stapelproses, spesifyk ûntworpen foar prismatyske selproduksje. Oars as winding metoaden, stacking aligns elektrodes lagen mei presyzje, ferbetterjen romte benutten en termyske behear. Yntegreare yn ús automatisearre line wurket de stapelmodule yn tandem mei hege -precision coating, cutting, en welding apparatuer om unifoarme sellen te produsearjen yn 30Ah oant 314Ah kapasiteiten. Dit proses ferbettert sykluslibben en feiligens, wêrtroch it ideaal is foar easken EV- en ESS-applikaasjes. Kombinearre mei yn-line-ynspeksje en MES-tracking, soarget ús stapeltechnology derfoar dat elke sel oan stringende prestaasjenoarmen foldocht.
Oer Turnkey

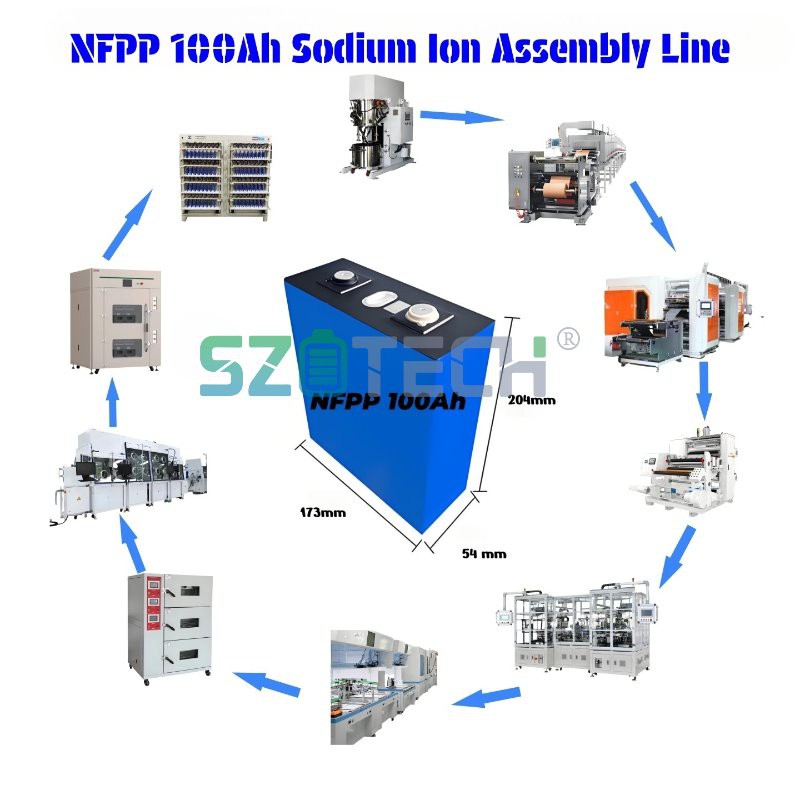

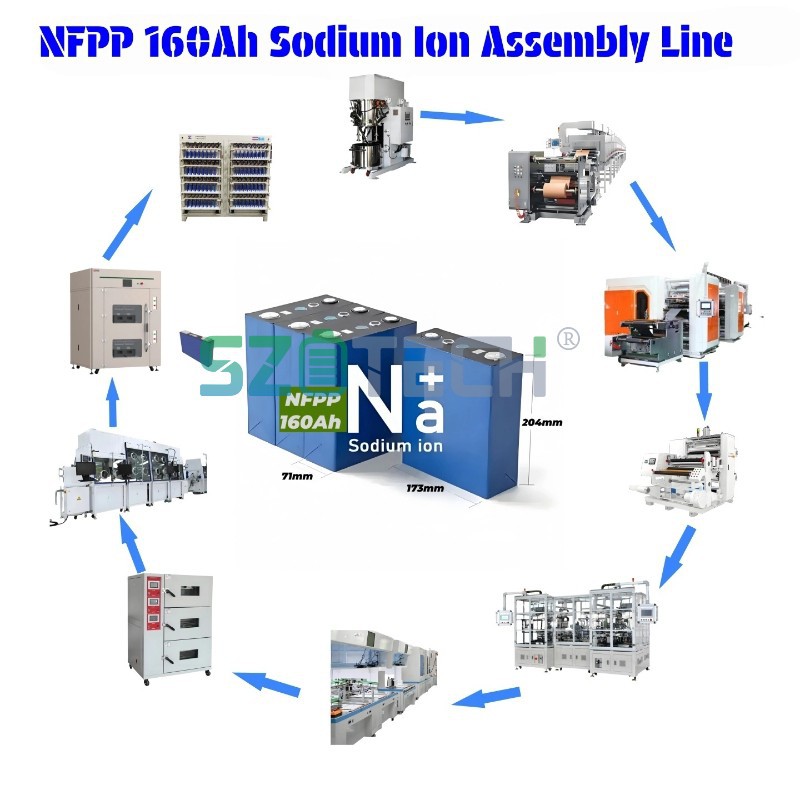

PrismatyskBattery Process Flow Chart
Equipment List
|
S NO. |
Workshop |
Equipment Namme |
|
1 |
Cathode |
Oven |
|
2 |
Planetary Vacuum Mixer |
|
|
3 |
Turnover Barrel mei liftsysteem |
|
|
4 |
Viskosimeter |
|
|
5 |
Coating Machine |
|
|
6 |
Diktemeter |
|
|
7 |
Trochgean Pressing Machine |
|
|
8 |
Auto Slitting Machine |
|
|
9 |
Baking Oven |
|
|
10 |
Anode |
Deionisearre wetter masine |
|
11 |
Planetary Vacuum Mixer |
|
|
12 |
Turnover Barrel mei liftsysteem |
|
|
13 |
Viskosimeter |
|
|
14 |
Coating Machine |
|
|
15 |
Diktemeter |
|
|
16 |
Trochgean Pressing Machine |
|
|
17 |
Auto Slitting Machine |
|
|
18 |
Baking Oven |
|
|
19 |
Sammelje |
Auto Winding Machine |
|
20 |
Koarte Testing Machine |
|
|
21 |
Bottom Shell Welding Machine |
|
|
22 |
Auto Grooving Machine |
|
|
23 |
Baking Oven |
|
|
24 |
Ynfoljen en |
Hânske doaze |
|
25 |
Laser Welder |
|
|
26 |
Lineêre Sealing Machine |
|
|
27 |
Batterij Cleaning Machine |
|
|
28 |
PVC Krimp Machine |
|
|
29 |
Cartoning masine |
|
|
30 |
Grading |
Formaasje Machine |
|
31 |
Kompjûter |
|
|
32 |
Hege temperatuer opslach |
|
|
33 |
Normale temperatuer opslach |
|
|
34 |
Cell Inkjet Printer |
|
|
35 |
OCV1 |
|
|
36 |
OCV2 |
|
|
37 |
OCV3 (sortearje masine) |
|
|
38 |
Grading Machine |
|
|
39 |
Sortearje masine |
|
|
40 |
Oar |
NMP herstelsysteem |
|
41 |
Plant dehumidification systeem |
|
|
42 |
Reinige wetter |
|
|
43 |
Oare Needsaaklik |
Vacuum Pump + Compressed Air |
